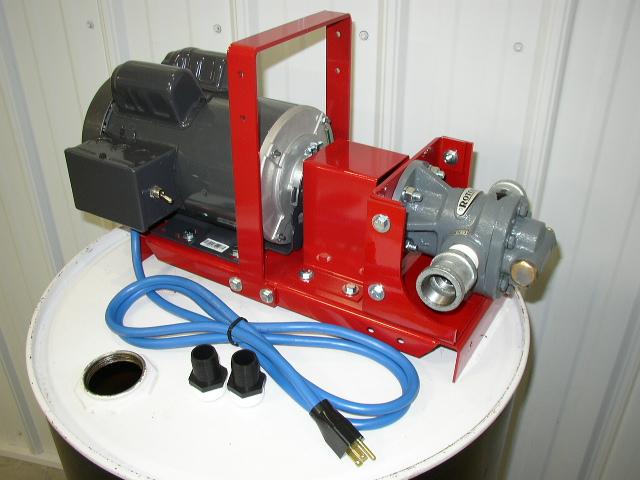

The Extreme Duty MP4000RSG 3/4 HP Redline Transfer Pump with Rotodel 1" Gear Head. Moves Heavy Oil Even In Cold Weather- $1199.00 + $90.00 Shipping. Call 1-605-881-3473 to Order.
This is the 16 GPMMP4000RSG Extreme Duty 3/4 HP Redline Waste Oil/Bulk Oil Transfer Pumpwhich features a reduced speedIndustrial Grade 110 volt electric motor.This pump can be fitted withour "High Capacity" 10 Micron Spin-On Filter System for an extra $350.00.A 3 micron filter system can be used in series with the 10 micron. Ask for pricing. A 3 position aluminum hand truck is now available for easy handling. Call for pictures, price, and specs on the hand truck.You will love it! The filtration system features dual 1" brass ball valves for bypass operation. Call for a quote on custom filter options. All fittings are 1" NPT on this system. This pump draws 10.6 amps and can easily run on a standard 110 volt circuit. This transfer pump has the power to transfer most any type of oil, even when it's freezing cold! You can expect flow rates of around 12 GPM with freezing coldmotor oil. (Actual flow rate will vary with the type of oil and suction hose length.) The 1" Port Rotodel gear type pumping unit is self primeing and is to be used with 1" orlarger hose. It puts out 125 psi. 1" barbs are included with the system. This system has a pressure relief system. The pump can have the flow cut off while the pump is running and full of fluid. The motor on this pump is a totally enclosed/fan cooled unit that can be used outdoors. It is totally sealed so dirt and water stay out of the motor. It has an 11 gauge solid steel mounting frame with a 3/16" steel carry handle. The frame system has a high quality redpowder coat to protect it from the elements and corrosion. This system is ideal for cold waste oil or bulk oil transfer. The motor on this pump runs at a slower speed than most other motors you will find on transfer pumps. A standard motor turns at 1800 rpm. Pumps with motors turning at 1800 rpm are good for oil that is above 50 degrees in temperature and not heavier than 15w40. This purpose built transfer pump has a motor that runs at 1140rpm. By reducing the speed of the motor you enable the unit to transfer bulk or wastemotor oil that isheavier and thicker. When waste or bulk oil gets cold, it gets thick. Running a thick, cold oil through a gear head that is turning at 1800 rpm is not only hard on the pump and motor, it doesn't flow very fast. Using a reduced speed pump to transfer cold oil is the best way to get the maximum flow and not put your system at risk of failure. Keeping the suction line short is also a must when transferring cold oil. Keeping the suction line 10 feet long or shorter is best to ensure a fast flow. Other accessories for this system arethe suction wand with 16 mesh debris screen for $45.00 or a complete 1" heavy duty oil resistant hose kit which includes two 10 foot hoses, a full set of cam lever quick couplings, and a suction wand with debris screen for $285.00.Add $50.00 for the 1" NPT steel adapter kit when ordering the hose kit, strainer, or spin-on filter systems. We also offer a"High Capacity" Cleanable Suction Strainer for the suction side of the pump for $185.00 .The strainer is required when the pump is connected to an oil source that prohibits the use of a suction wand that has the debris screen. For example, sucking oil out of the bottom of a tank through an existing drain hole, underground tanks, sucking gear lube out of a gear box with a small opening, or when sucking oil from a tall container in room with a short ceiling, like a basement with a heating oil tank in it that needs to be drained. This system is $1199.00 + $90.00 Shipping. Call 1-605-881-3473 to order. David L. Miller

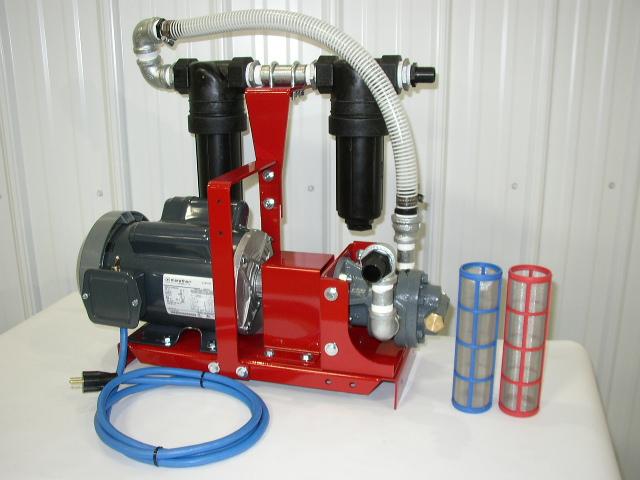

Redline MP4000RSG-ST 3/4 HP Heavy Duty Transfer/Filtration Pump with 3/4" Port Gear Head- $1499.00 + $120.00 Shipping. Call 1-605-881-3473 to order.
Here is our Redline MP4000RSG-ST Heavy Duty 3/4 HP 110 Volt Waste Oil/Bulk Oil Transfer/Filtration System. This system has a 3/4 HP 1140 RPM 110 (or 220) volt electric motor. This system is designed for use with any type of oil even in freezing cold temperatures. For cold/heavy oil transfer without the filtration, see the MP4000RSG pictured above. This system features our dual suction strainer system with cleanable screens in series. They are 300 micron and 600 micron. Other micron sizes are available like 150, 180, and 1100 micron. We will customize if you want different screens. The pumping unit on the MP4000RSG-ST is a heavy duty Rotodel cast iron rotary gear head with 3/4" NPT ports in and out. It has helical gears which make it able to move heavy oils and is much quieter than other pumps. This unit is designed for fast oil transfer/filtration and should only be used with 1" ID hose or larger. It's pumping unit has an adjustable pressure relief system so you can adjust your output pressure when filtering bulk or waste oil. This unit can put out up to 100 PSI so you will be able to filter oil with more pressure than most other pumps. This is important if longer filter life is expected. Longer filter life means less money spent on replacement filters! This pump has Viton seals so it can be used with biodiesel, vegetable oil, motor oil, mineral oil, silicone oil, and diesel. The MP4000RSG-ST is self primeing. To make pumping waste or bulk oil easier, we have the 1" Hose Kit with two 10 foot oil resistant hoses, a complete set of quick couplers with caps and plugs, and a 42" suction wand with a built in 16 mesh screen. The hose kit is a great idea since it eliminates having to use hose barbs and clamps. Our 1" Hose Kit is $285.00 + $40.00 shipping. The wand protects the pump from harmful debris that is common in waste oil. A suction wand with a 16 mesh screen by itself is $45.00. If longer hoses are required, add $6.00 per foot for pressure hose and $4.00 per foot for suction hose. Our "Dual High Capacity" Suction Strainers feature 2 cleanable stainless steel screens in series. They are 8" tall and 2 1/2" in diameter. The strainers are mounted on the inlet side of the pump and can be taken apart and cleaned when they are full of debris. This system can also be used with our 10 micron filter system. This 10 micron filter system has dual ball valves so you can filter the oil or you can shut the filter off and run unfiltered oil out the other side of the filter bar. The 10 micron filter system is $350.00.00+ $30.00 shipping. Pressure gauges are $20.00. The MP4000RSG-ST is $1499.00 + $120.00 shipping to the lower 48 states. Call 1-605-881-3473 to order with your credit card.
