Gas Powered Oil Transfer and Filtration at 24 to 38 GPM! Our Systems Feature Honda Engines, Pull or Electric Start, and All Weather Capabilitites. Starting at $1699.00 + Shipping. Call 1-605-881-3473 to Order
The MP4000EXG Complete Honda Powered Waste Oil Transfer System Features A 24 GPM Cast Iron Gear Head Controlled By a 5.5 HP Honda Engine With a 2:1 Speed Reduction System. The MP4000EXG Complete is $2100.00 + $200.00 Shipping. Call 1-605-881-3473 to order

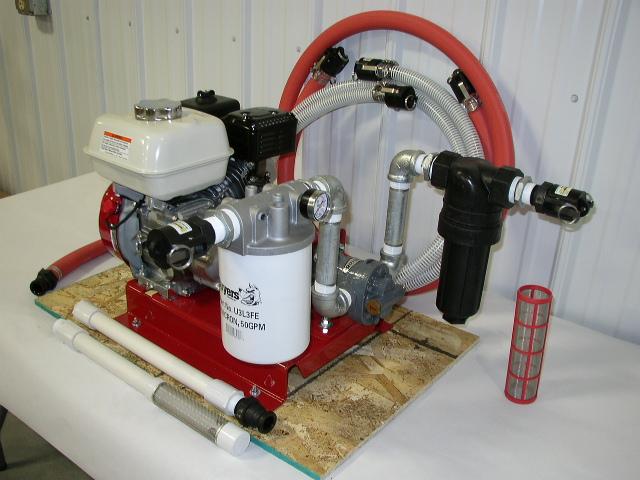

The MP4000EXG Complete Honda Powered Waste Oil Transfer System features a 5.5 HPHonda engine, a 1" port Rotodel 24 GPM cast iron gear pump, a2:1 speed reduction systemcontrolled bya centrifugal clutch, and a heavy duty 3/16" plate steel frame. The system also features a 10 micron spin-on filter system with pressure gauge and a cleanable suction strainer. The MP4000EXG is designed for moving most any type of oil, even when it is thick and cold. The centrifugal clutch is a very important feature this pump offers. Since the clutch is speed sensitive, the pumping unit does not engage until the unit has started. This means easy starting for the operator! This unit is self primeing and is used with hose 1" or larger. This system includes a 1" heavy duty hose kit that has two 10 foot oil resistant hoses, a full set of cam lever quick couplers, and a suction wand with a 16 mesh screen. This MP4000EXG Complete is $2100.00 + $200.00 shipping. Call 1-605-881-3473 to order with your credit card. -David L. Miller
The MP4000EXG and the MP4000EXG-125 24-38 GPM Honda Powered Waste Oil/Bulk Oil Transfer Pumps move any type of oil like bulk, hydraulic, gear lube, and WVO . Even when it's freezing cold! $1699.0 + $150.00 shipping (24 GPM) or $1999.00+ $200.00 Shipping (38 GPM). Electric Start Models Add $300.00. Call 1-605-881-3473 to order.
The 5.5 HP MP4000EXG Series Pumps Deliver 24 or 38 GPM!!! These Two Honda Powered Waste Oil/Bulk Oil Transfer Systems use large 1" or 1 1/4" Cast Iron Pumping Units With SteelGears.Now with an optional electric startoption!These systems feature a 2:1 speed reduction system controlled by a centrifugal clutch. They start easy and have a lot of power for any type of oil transfer job. These types of pumps are very good at self primeing. These gear heads have large 1" or 1 1/4" inlet and outlet ports which allows the oil to flow fast, especially when it is cold (below 50 degrees). Suction lines should be kept as short as possible when moving cold oil to ensure a fast flow rate. The large ports also work well with heavy oils like 15w40 on up to the heaviest gear lube. The MP4000EXG systems are used with 1" ID orlarger inlet and outlet hose. (See our system with a hose kit below if you want a complete set-up.) 1" ID hose is the smallest hose that will work with this pump. The MP4000EXG-125 pump uses 1 1/2" hose. This system uses the same hose kit provided with the MP5000 series pumps shown above. Add $75.00 for the steel adapter kit shown on the gear head if ordering a hose kit. Add $50.00 for the adapter kit with 1 1/2" steel female threads without a hose kit. The pumping unit has an adjustable pressure reliefsystem. This means it can create pressure against a filter system at the desired pressure rating up to 125 PSI. The pumping unit has an adjustment bolt on the back of the head that sets the pressure up or down. The seals in the pump head are Viton. This seal material is best when moving any type of oil, especially waste vegetable oil. The 5.5 HP 24 GPM MP4000EXG is $1699.00 + $150.00 Shipping. The 5.5 HP 38 GPM MP4000EXG-125 is $1999.00 + $200.00 Shipping. Shipping costs displayed are for the lower 48 United States. Add $300.00 for the Electric Start Option. Call 1-605-881-3473 to order. --David L. Miller
Honda Gas Powered Complete Waste Oil Transfer System Featuring a 5.5 HP Gas Engine and a 25 GPM Self Primeing Gear Pump. $1850.00 + $200.00 shipping (add $200.00 for electric start Honda). For a Briggs and Stratton 6.5 HP Engine, the cost is $1650.00 + $200.00 Shipping. Call 1-605-881-3473 to order.

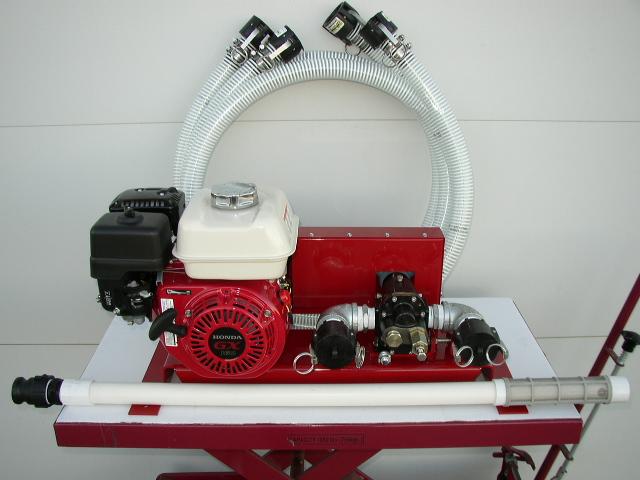

Here is our Honda or Briggs Powered Complete Waste Oil Transfer System which features a 5.5 HP Honda engine or a 6.5 HP Briggs and Stratton Engine. We offer the Honda system with electric start, Model #MP5000-GHES or pull start Model #MP5000-55G. The Briggs model # is MP5000-65G. Both systems feature a 25 GPM heavy duty cast iron pumping unit with steel gears with 1 1/4" inlet and outlet ports.This system features a belt and pulley speed reductionsystem, a heavy duty solid steel frame with mounting holes, and a safety shield. It also has a full set of cam lever quick coulpers, a 48" long suction wand with a built in 16 mesh screen, and two 12 foot hoses that are 1 1/2" inner diameter. The wand that is included with this system will fit in any 2" bung on tanks or barrels. All ports on the pump and the hoses can be plugged for transport. This eliminates a big mess when you need to move the system. This unit is designed for collecting, filtering, or transferring petroleum based liquids and waste vegetable oil. It cannot be used to transfer any flammable liquids like gasoline! It has a powerful suction force that will self prime with long suction hoses and has a 19 foot vertical lift capacity! It's cast iron pumping unit has an adjustable pressure relief system that can create up to 125 PSI. The relief flow can be internally or externally ported. These systems are pull start and come with on/off switches. This system can be used to transfer motor oil or vegetable oil in cold temperatures (below 40 degrees). When pumping freezing cold oil, slowing the pumping unit down prevents cavitation in the oil source. This is done by simply reducing the speed of theengine with the adjustable throttle.The MP5000-65G Briggs and Stratton is $1650.00 + $200.00 shipping. The MP5000-55G (pull start) Honda is $1850.00 + $200.00 Shipping. The MP5000-GHES Electric Start Honda is $2050.00 + $200.00 Shipping. Call 1-605-881-3473 to order with your credit card.
